SPECIFICATIONS
AI Functions: Motion Detection
Alarm Action: FTP Photo,Email Photo,Local Alarm
Alarm Type: FTP Photo
Audio Output: None
Brand Name: HQCAM
Certification: CE
Choice: yes
Color: black
Connectivity: Closed System/CCTV Wired
High Definition: 5.0 Megapixels
High-concerned chemical: None
Installation: Embedded
Internal Storage: None
Lens (mm): 3.7mm
Lens Quantity: Single Lens
Megapixels: 5 MP
Operating Temperature: -10°-60°
Optical Zoom: None
Origin: Mainland China
Power Consumption(W): 3
Power Mode: Mains Electricity
Power Source: Normal
Power Supply: Normal
Power Supply(V): 12v
Rechargeable Battery: None
Scene: Indoor
Sensor: CMOS
Sensor Brand: SmartSens
Shell Material: Plastic
Special Features: Vandal-proof
Style: Mini Camera
Supported Mobile Systems: Android,iOS
Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
TF Card: 128G TF Card
Video Compression Format: H.264,H.265
Viewing Angle : 90°
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: None
Zoom type: None
is_customized: Yes
5MP is clearer
Immersive 2MP/5MP Super HD

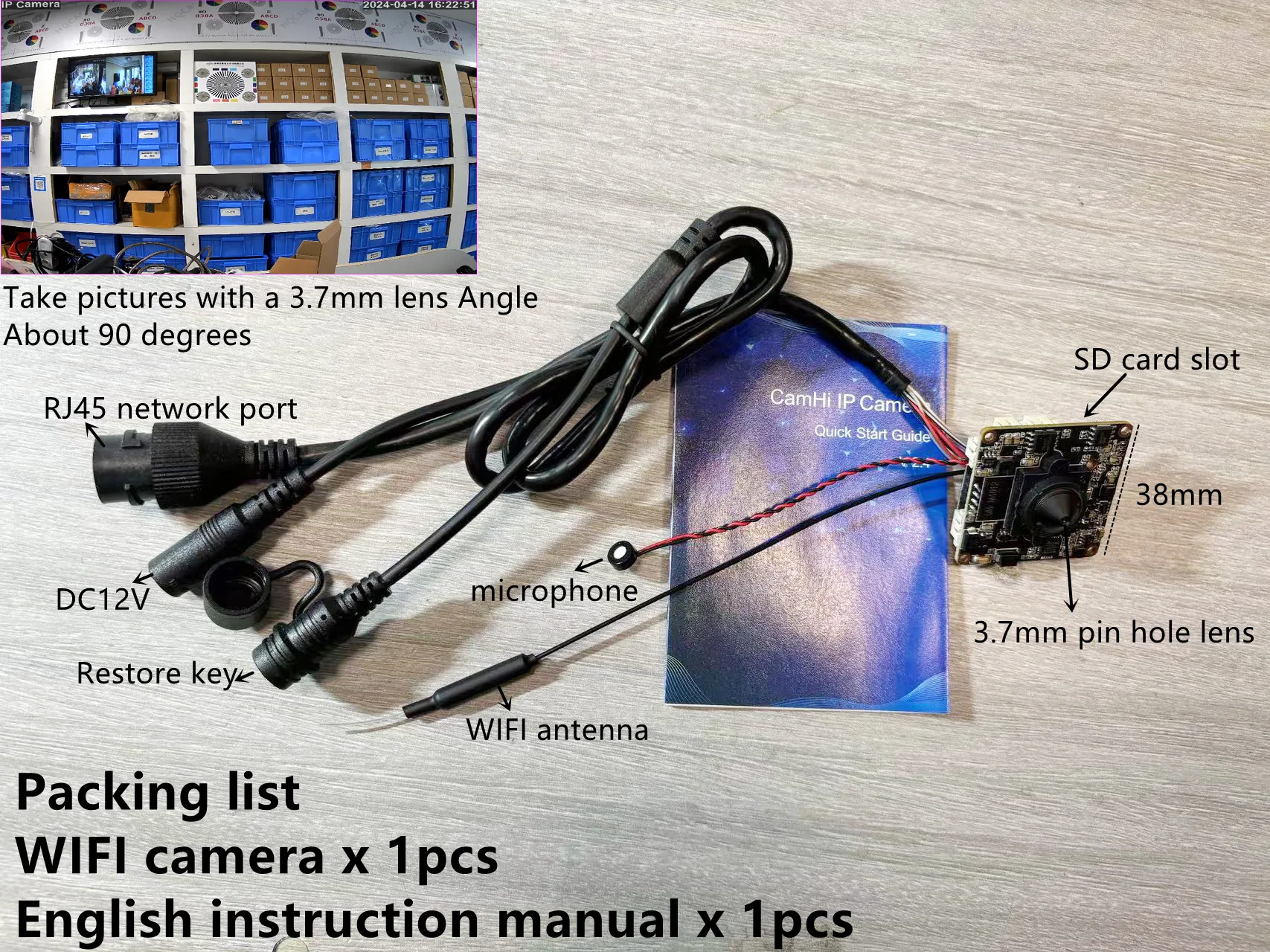

Different angle lens available
the standard configuration is 3.7mm lens, about 85 degrees

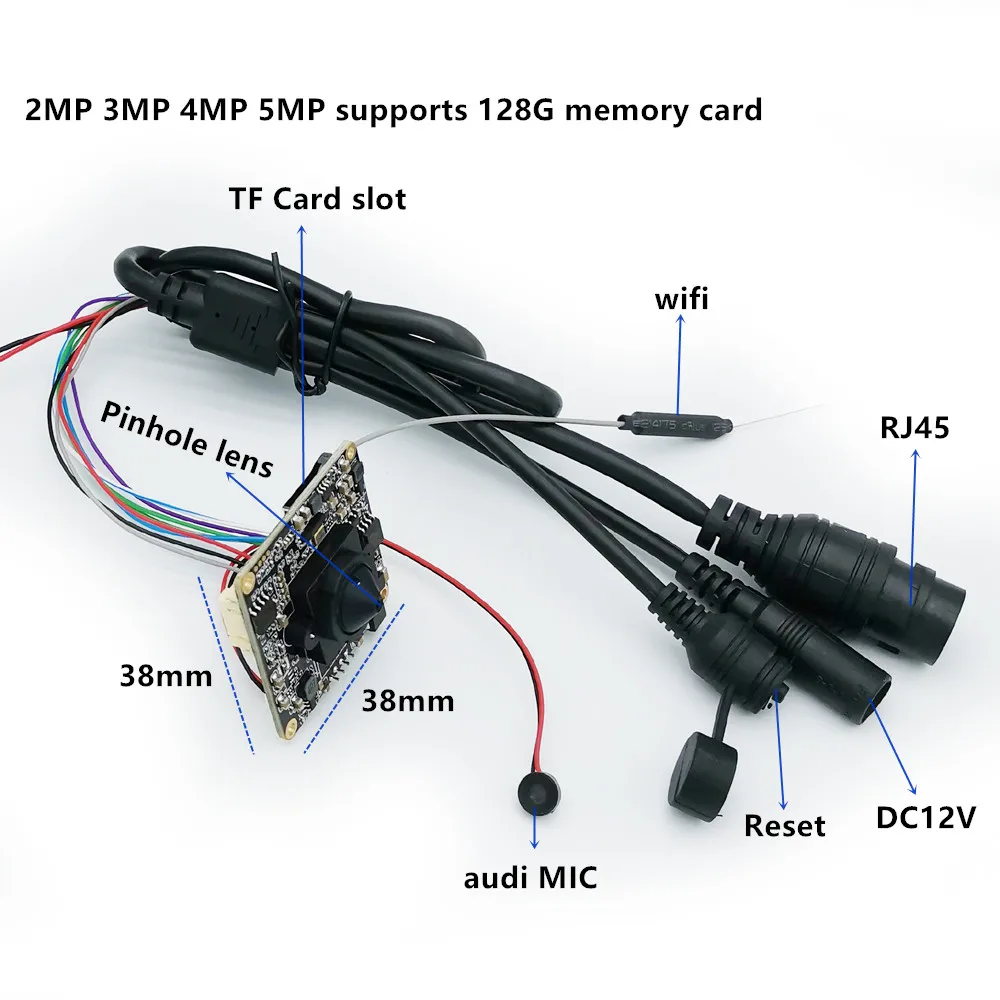

SIZE
size 38x38mm
2MP 1080P Parameters
The 2MP low lux HD camera module adopts a highly integrated SOC processor, with extremely low power consumption and super stability; Support H.264 and H.265 compression algorithm, effectively reduce network bandwidth usage while ensuring image quality; Powerful network capabilities, support standard ONVIF protocol, RTSP, support uploading alarm images to FTP server, sending alarm images to E-Mail, and remote monitoring with mobile phones.
Main characteristics
Ø High sensitivity, high S/N CMOS image sensor
Ø Using SoC GK
Ø The highest pixel can reach 200W, and the highest resolution can reach 1920×1080
Ø Default H265 compression algorithm, effectively reduces network bandwidth, support dual stream, and support mobile phone monitoring
Ø Support multiple network protocols: TCP/IP，HTTP，TCP，ICMP，UDP，ARP， IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSPand so on.
Ø Support ONVIF protocol
Ø Support manufacturer DDNS and third-party DDNS
Ø Support sending alarm images via email
Ø Support uploading alarm pictures and alarm videos to FTP server
Ø Support timed capture of images to FTP server
Ø Support both static IP and dynamic IP (DHCP)
Ø With amplifier chip, it can be directly connected to a speaker
Ø Support IE, Google, and Firefox browsers
Ø Support up to 6 users browsing simultaneously (3 users per stream)
Ø Provide motion detection alarm function (area, sensitivity can be set)
Ø Support Micro SD card, maximum 128GB Micro SD card
Ø Support APP downloading and replaying SD card recordings
Parameter
|
1080P 2MP WIFI |
|||||
|
operating system |
Embedded LINUX |
||||
|
main processor |
GK |
||||
|
image sensor |
1/3”CMOS sensor |
||||
|
IRCUT |
support |
||||
|
Compression standard |
|||||
|
Video compression algorithm |
Support H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline |
||||
|
Audio compression algorithm |
G.726/G.711 |
||||
|
Compressed transmission stream |
32Kbps-6144bps, can self-defining, default 1280Kbps |
||||
|
Image |
|||||
|
Maximum image size |
200W(1920×1080) |
||||
|
definition |
First stream: 200W（1920×1080） |
||||
|
Second stream:640×352 |
|||||
|
Video frame rate |
2MP 20fps(50HZ), 20fps(60HZ) |
||||
|
Character overlay |
Support OSD name, time and date information overlay |
||||
|
Image Settings |
Brightness, contrast, saturation, exposure, up and down reversal, left and right mirror adjustable |
||||
|
Network function |
|||||
|
Storage function |
Support Maximum 128GB Micro SD card storage, support timed recording and alarm recording storage(Alarm recording duration of 15 seconds), support alarm upload cloud storage function (requires purchase of cloud storage package) |
||||
|
Motion detection |
4 independent detection areas can be set (sensitivity 1-100 can be set) |
||||
|
Alarm linkage |
Send pictures of the alarm to the designated email address; Upload alarm pictures and alarm recordings to the FTP server |
||||
|
Network Protocol |
Support TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP |
||||
|
Access Protocol |
Support ONVIF 2.4 protocol |
||||
|
Interface |
|||||
|
Audio input |
1CHinput, support MIC input |
||||
|
Audio output |
1CHoutput, use with an 8-ohm speaker |
||||
|
network interface |
10Base-T/100Base-TX Ethernet interface |
||||
|
WiFi 802.11b/g/nWireless network interface |
|||||
|
General specifications |
|||||
|
Size |
38x38mm (length, width and height） |
||||
|
Temperature and humidity |
0℃～+50℃10%～95%RH |
||||
|
Power Supply |
DC12V 2A |
||||
|
Power consumption |
1.5W |
||||
5MP 1080P Parameters
Parameter
Ø Support alarm recordings upload to cloud (requires to purchase cloud storage package)
Ø Support APP downloading and replaying SD card recordings
Ø Support Micro SD card, Max 128GB Micro SD card
Ø Support humanoid recognition, vehicle recognition, and pet recognition
Ø Provide motion detection alarm function (area, sensitivity can be set)
Ø Support up to 6 users browsing simultaneously (3 users per stream)
Ø Support IE, Google, and Firefox browsers
Ø Support P2P Plug and Play
Ø Support both static IP and dynamic IP (DHCP)
Ø Support timed capture of images to FTP server
Ø Support uploading alarm pictures and alarm videos to FTP server
Ø Support sending alarm images via email
Ø Support manufacturer DDNS and third-party DDNS
Ø Support ONVIF protocol
Ø Support multiple network protocols: TCP/IP，HTTP，TCP，ICMP，UDP，ARP， IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP and so on.
Ø H265 compression algorithm, effectively reduces network bandwidth, support dual stream, and support mobile phone monitoring
Ø The highest pixel can reach 500W, and the highest resolution can reach (2880×1620)
Ø Using Ingenic T41
Ø High sensitivity, high S/N CMOS image sensor
Main characteristics
The 5MP low lux HD camera module adopts a highly integrated SOC processor, with extremely low power consumption and super stability; Support H.265 compression algorithm, effectively reduce network bandwidth usage while ensuring image quality; Powerful network capabilities, support ONVIF, support RTSP, support alarm pictures upload to FTP server and remote monitoring with mobile phones.
Brief introduction
|
5MP WIFI |
||||||
|
operating system |
Embedded LINUX |
|||||
|
main processor |
Ingenic T41NQ |
|||||
|
image sensor |
1/2.7”CMOS sensor |
|||||
|
IRCUT |
support |
|||||
|
Compression standard |
||||||
|
Video compression algorithm |
Support H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline |
|||||
|
Audio compression algorithm |
G.711 |
|||||
|
Compressed transmission stream |
32Kbps-6144bps, can self-defining, default 960Kbps |
|||||
|
Image |
||||||
|
Maximum image size |
500W(2880×1620) |
|||||
|
definition |
First stream: 500W(2880×1620)，400W（2560×1440） |
|||||
|
Second stream: 800×600，640×480，800×480、640×352 |
||||||
|
Video frame rate |
15fps(50HZ), 15fps(60HZ) |
|||||
|
Character overlay |
Support OSD name, time and date information overlay |
|||||
|
Image Settings |
Brightness, contrast, saturation, exposure, up and down reversal, left and right mirror adjustable |
|||||
|
Network function |
||||||
|
Storage function |
Support Maximum 128GB Micro SD card storage, support timed recording and alarm recording storage(Alarm recording duration of 15 seconds), support alarm upload cloud server (requires purchase of cloud storage package) |
|||||
|
Motion detection |
4 independent detection areas can be set (sensitivity 1-100 can be set) |
|||||
|
Alarm linkage |
Send pictures of the alarm to the designated mailbox; Upload alarm pictures and alarm recordings to the FTP server; support alarm pictures and videos to TF card |
|||||
|
Network Protocol |
Support TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP |
|||||
|
Access Protocol |
Support ONVIF 2.4 protocol |
|||||
|
Interface |
||||||
|
Audio input |
1CH input, support MIC input |
|||||
|
Audio output |
1CH output, support connecting headphones or amplifiers |
|||||
|
network interface |
10Base-T/100Base-TX Ethernet interface |
|||||
|
WiFi 802.11b/g/n Wireless network interface |
||||||
|
General specifications |
||||||
|
Size |
(length, width）38x38mm |
|||||
|
Temperature and humidity |
0℃～+50℃10%～95%RH |
|||||
|
Power Supply |
DC12V 2A |
|||||
|
Power consumption |
1.5W |
|||||
