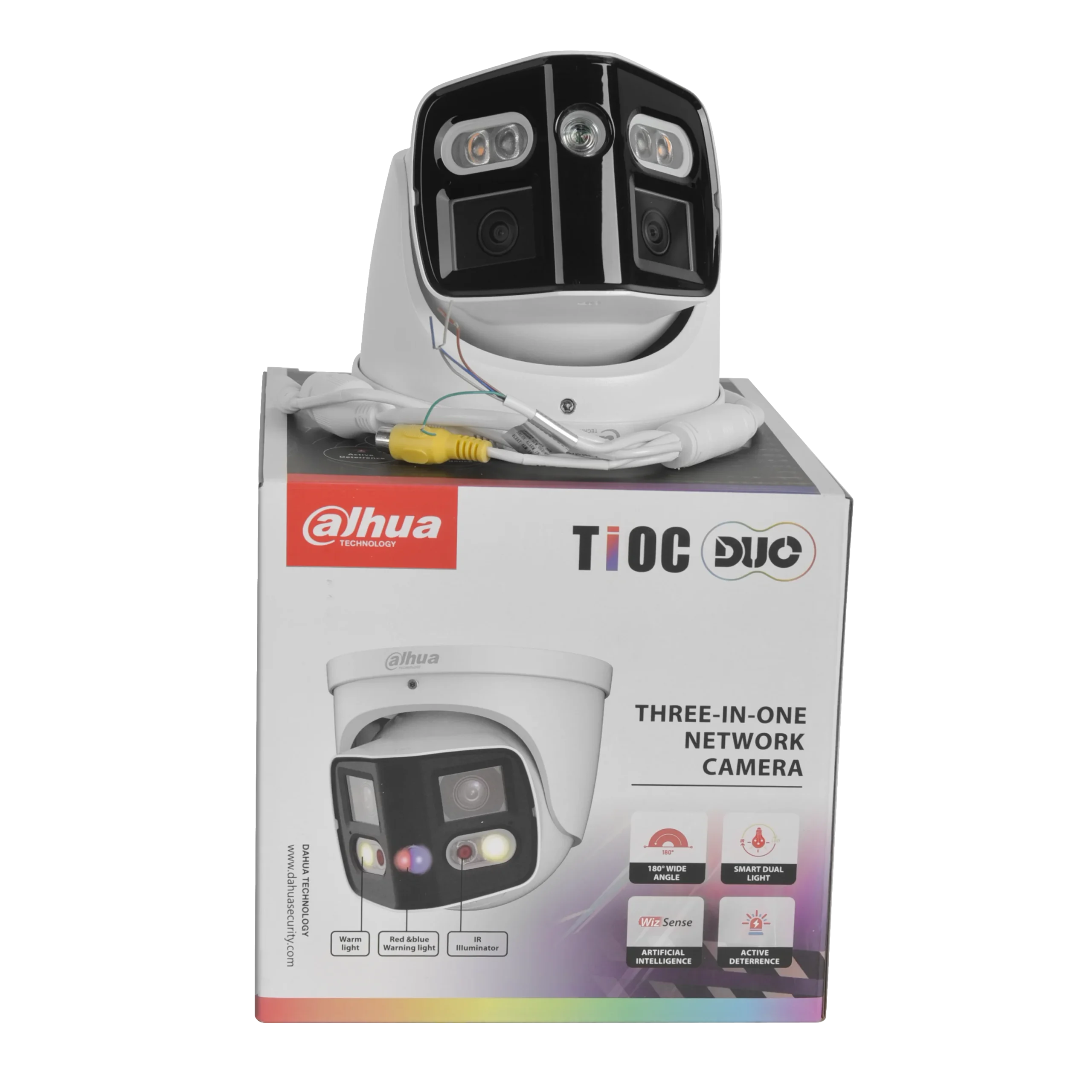

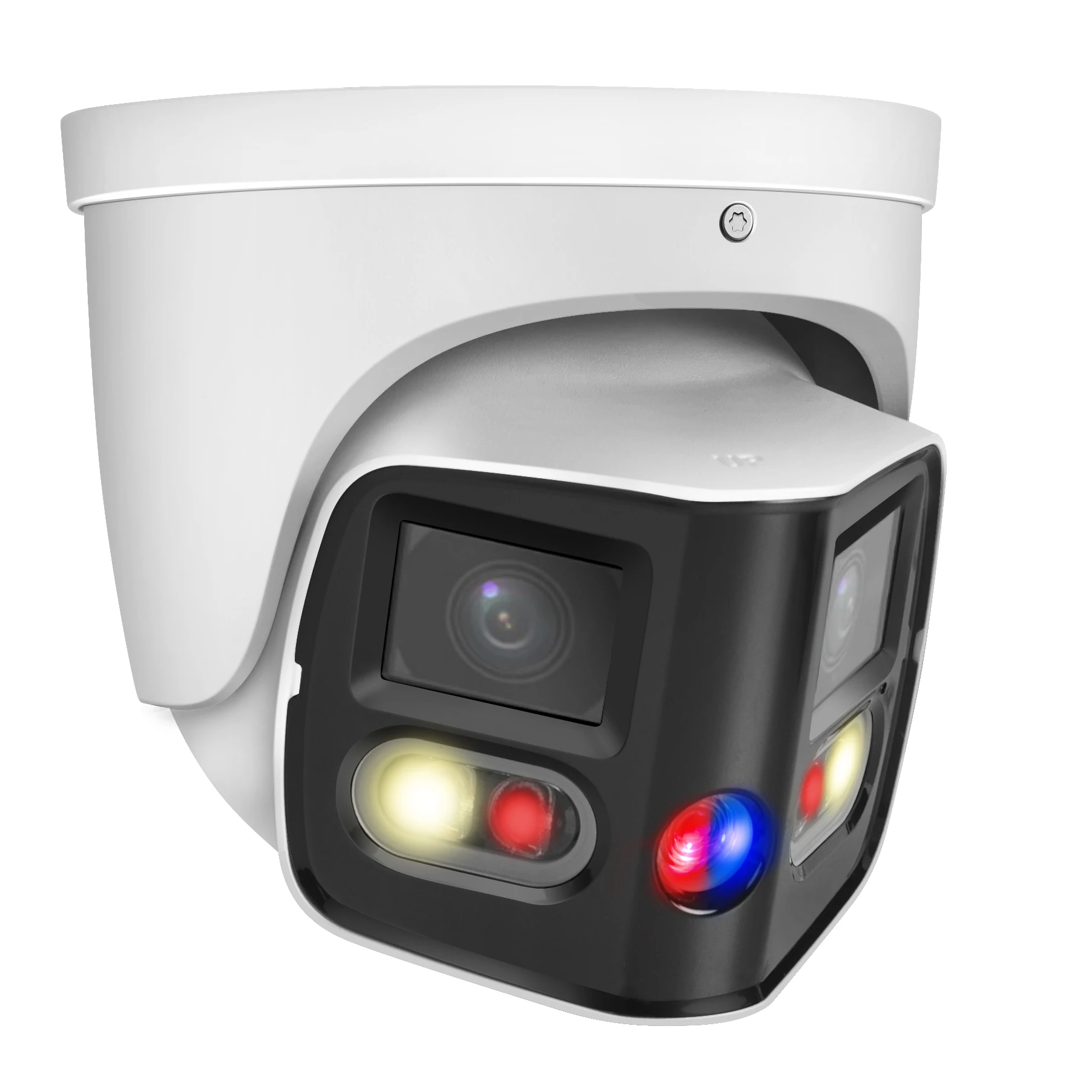

IPC-PDW3849-A180-AS-PV2x4MP TiOC Duo Splicing Fixed-focal Eyeball WizSense Network Camera

> Outputs 180° wide angle splicing image. > Outputs max. 8 MP (4096 × 1860)@20 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.

> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.

> 12 VDC/PoE power supply, easy for installation. > IP67 protection.

> Sound and light alarm (red and blue lights)

> EPTZ: Enlarge and track the targets of intelligent alarms. > SMD 4.0.

> One-tap arming/disarming through alarm input

Camera :

Image Sensor : Dual 1/2.7" CMOS

Max. Resolution : 4096 (H) × 1860 (V)

ROM : 128 MB

RAM : 1 GB

Scanning System : Progressive

Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s

Min. Illumination : 0.005 lux@F1.4 (Color, 30 IRE)

 0.0005 lux@F1.4 (B/W, 30 IRE)

 0 lux (Illuminator on)

S/N Ratio : >56 dB

Illumination Distance : Up to 25 m (82.02 ft) (IR LED)

 Up to 20 m (65.62 ft) (Warm light)

Illuminator On/Off Control : Auto; Manual

Illuminator Number : 2 (IR LED); 2 (Warm light)

Angle Adjustment : Pan: 0°–360°

 Tilt: 0°–77°

 Rotation: 0°–360°

Lens :

Lens Type : Fixed-focal

Lens Mount : M12

Focal Length : 2.8 mm

Field of View : Horizontal: 180°; Vertical: 86°

Max. Aperture : F1.4

Iris Control : Fixed

Close Focus Distance : 0.8 m (2.62 ft)

Intelligence :

IVS (Perimeter Protection) : Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD : SMD 4.0

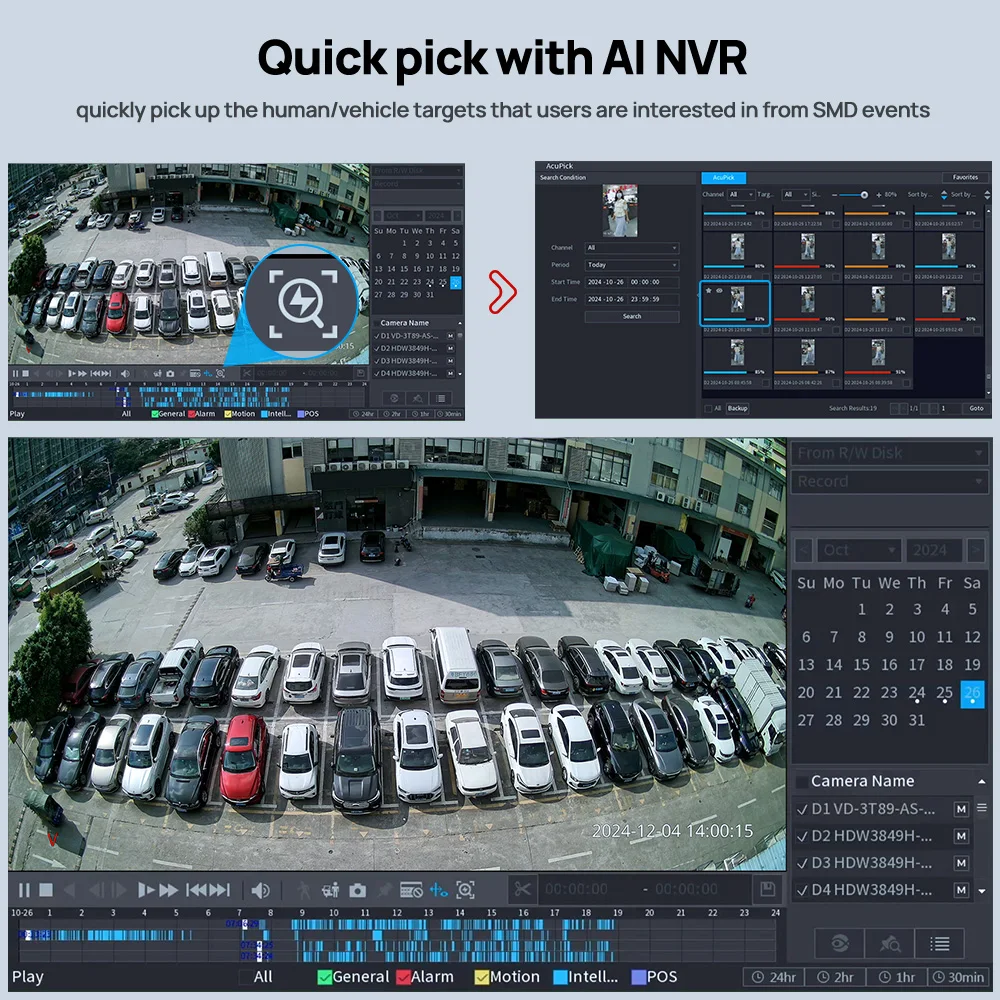

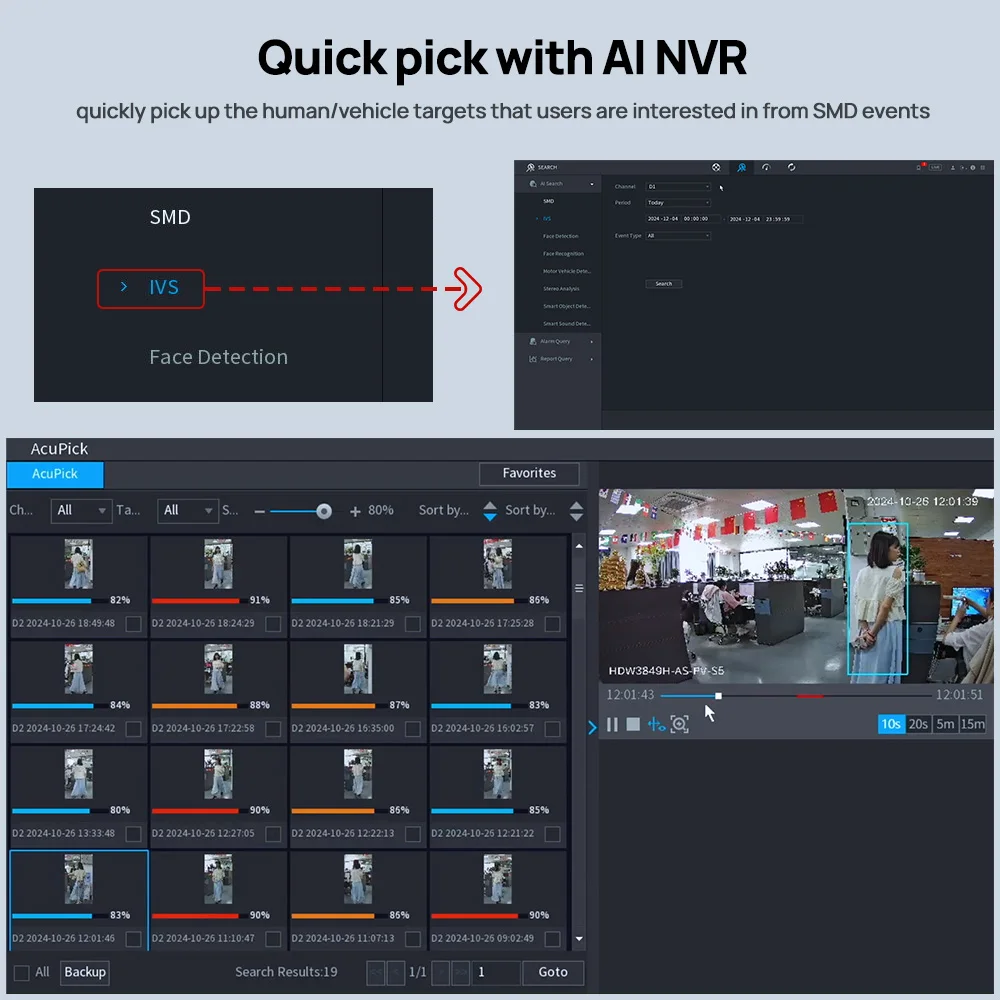

Quick Pick : With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events.

Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

EPTZ : Enlarge and track the targets of intelligent alarms

Video :

Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec : Smart H.265+;

 Smart H.264+

AI Coding : AI H.265;

 AI H.264

Video Frame Rate : Main stream: 4096 × 1860@(1–20 fps )

 Sub stream: 1200 × 530@(1–20 fps)

 Third stream: 1920 × 860@(1–20 fps)

 *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability : 3 streams

Resolution : 4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530; 1920 × 860; 960 × 432

Bit Rate Control : CBR/VBR

Video Bit Rate : H.264: 6 kbps –16384 kbps

 H.265: 6 kbps –16384 kbps

Day/Night : Auto(ICR)/Color/B/W

BLC : Yes

HLC : Yes

WDR : 120 dB

Scene Self-adaptation (SSA) : Yes

White Balance : Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control : Auto

Noise Reduction : 3D NR

Motion Detection : OFF/ON (4 areas, rectangular)

Region of Interest (RoI) : Yes (4 areas)

Privacy Masking : 4 areas

Defog : Yes

Audio :

Built-in MIC : Yes, built-in dual Mic

Built-in speaker : Yes, built-in speaker

Audio Compression : G.711a; G.711Mu; PCM; G.726; G.723

Alarm :

Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene chaging; audio detection; voltage detection; external alrm; SMD; security exception

Network :

Network Port : RJ-45 (10/100 Base-T)

SDK and API : Yes

Cyber Security : Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Network Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI

User/Host : 20 (Total bandwidth: 64 M)

Storage : FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser : IE: IE 8 and later

 Chrome

 Firefox

Management Software : Smart PSS Lite; DSS; DMSS

Mobile Client : iOS; Android

Certification :

Certifications : CE-LVD: EN62368-1

 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port :

Audio Input : 1 channel (RCA port)

Audio Output : 1 channel (RCA port)

Alarm Input : 1 channel in: wet contact, 5 mA 3 V–5 VDC

Alarm Output : 1 channel out: wet contact, 300 mA 12 VDC

Power :

Power Supply : 12 VDC (±30%); PoE (802.3af)

Power Consumption : Basic: 3.95 W (12 VDC); 4.95 W (PoE)

 Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.7 W (12 VDC); 10.85 W (PoE)

Environment :

Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity : ≤95%

Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)

Protection : IP67

Structure :

Casing : Metal

Product Dimensions : Φ122 mm × 135.2 mm (Φ4.80" × 5.32" )

Net Weight : 990 g (2.18 lb)

Gross Weight : 1150 g (2.54 lb)
