SPECIFICATIONS
AI Functions: Motion Detection
Alarm: 1 input, 1 output
Audio Output: 1CH RCA
Brand Name: HIKVISION
Certification: CE
Color: WHITE
Color Night Vision: Yes
Connectivity: IP/Network Wired
Dimensions (L x W x D)(mm): 179.3 mm*120 mm*182 mm
Feature 1: Capture a large area and details at the same time
Feature 2: Support Human and Vehicle detection
Feature 3: Smart Hybrid Light: advanced technology with long range
Feature 4: Built-in microphone and speaker for real-time audio security
Feature5: Hik-Connect cloud service and app for remote management and views of devices
Feature6: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
Focal Length: [Panoramic channel] 2.8 mm, [PTZ channel] 8 mm
High Definition: 4.0 Megapixels
High-concerned chemical: None
IP Rating: IP66
IR Distance(m): White Light Distance: up to 30 m
Image Sensor: 1/1.8″progressive scan CMOS
Installation: Side,Normal
Lens (mm): 2.8mm
Lens Quantity: Dual Lens
Megapixels: 4MP
Minimum Illumination(Lux): Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
Model Number: DS-2DE2C400MWG-E
Operating Temperature: -10°-60°
Origin: Mainland China
Power Consumption(W): 14W
Power Supply: With Poe
Power Supply(V): 12 VDC, 3.33 A & PoE (802.3at)
Scene: Indoor and outdoor
Sensor: CMOS
Shell Material: Plastic
Smart home platform: Other
Special Features: Waterproof / Weatherproof
Style: PT Camera
Supported Mobile Systems: Android,iOS,Symbian
Supported Operating Systems: Windows 2003,Windows 98,Windows 2000,Windows 2008,Windows 7,Windows 10,Windows XP,Windows 8,Windows Vista
TF Card: None
Video Compression Format: H.265,H.264,MJPEG
Viewing Angle : 100°
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: None
Zoom type: Digital zoom
is_customized: No
type: 4 MP ColorVu Network Speed Dome PTZ
DS-2SE2C400MWG-E/14

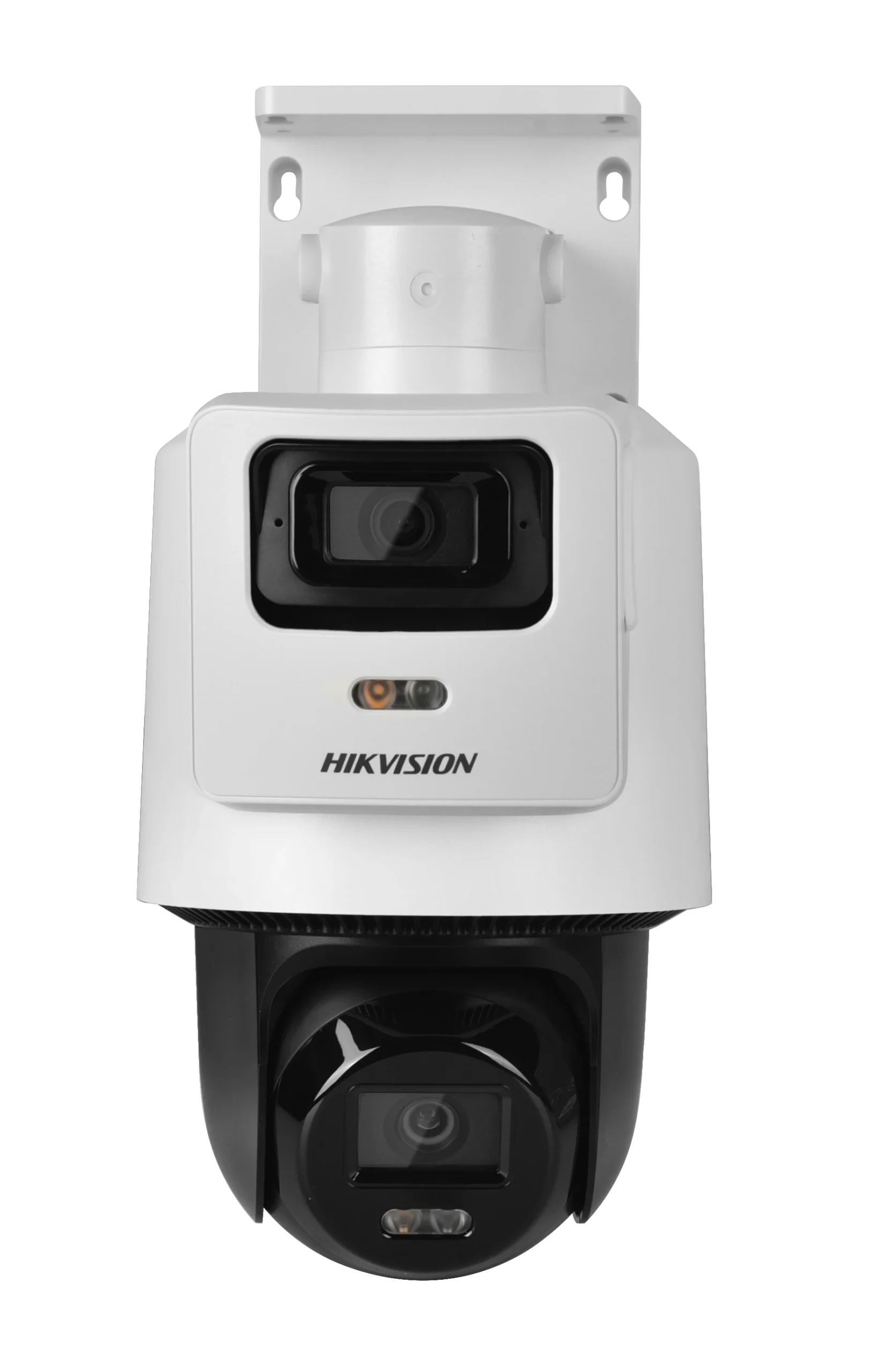

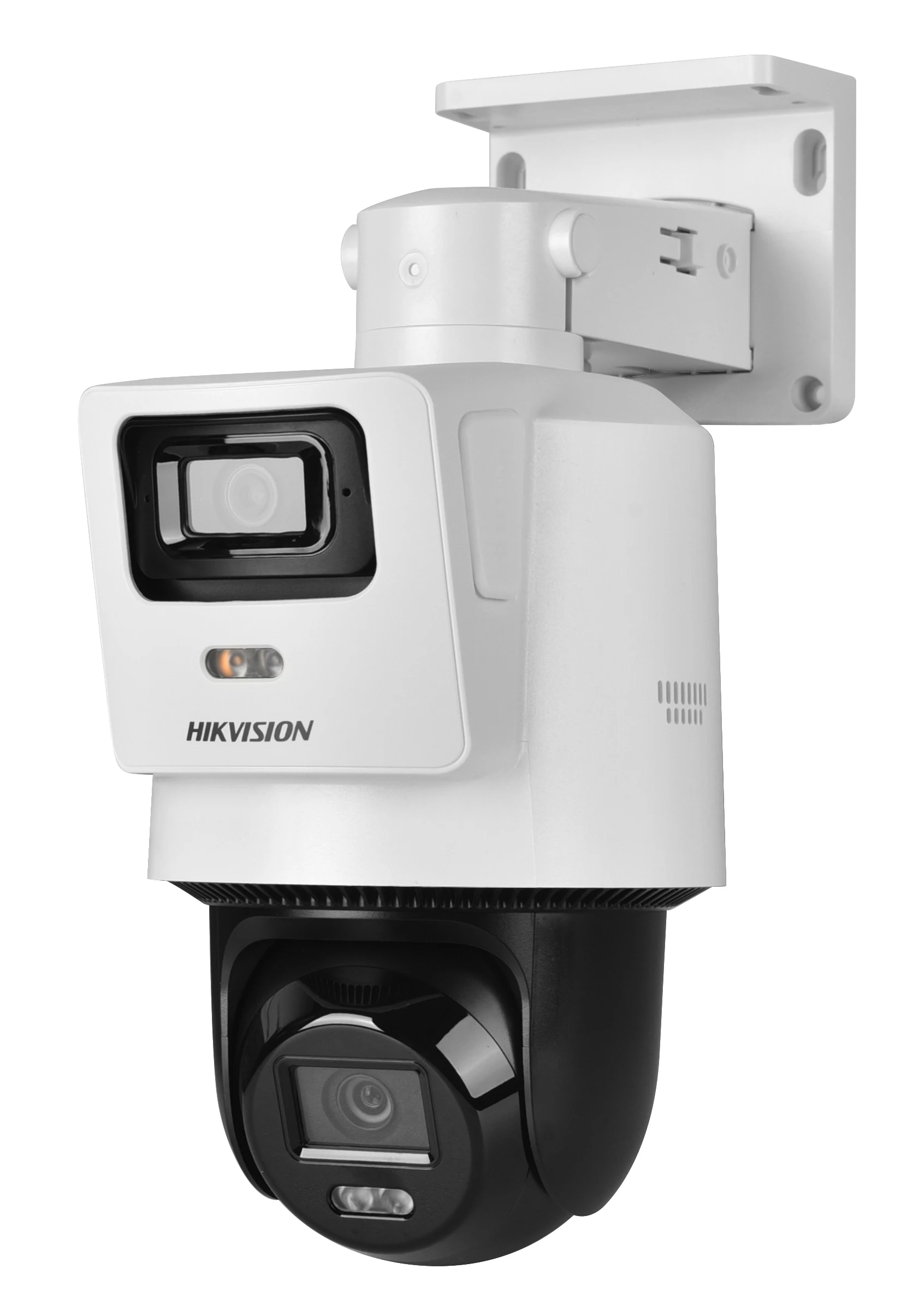

TandemVu 4MP+4MP Fixed Lens POE PT Network Camera
-
Capture a large area and details at the same time
-
Support Human and Vehicle detection
-
Smart Hybrid Light: advanced technology with long range
-
Hik-Connect cloud service and app for remote management and views of devices
-
Built-in microphone and speaker for real-time audio security
-
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
-
Water and dust resistant (IP66)
-
Capture a large area and details at the same time
-
Support Human and Vehicle detection
-
Smart Hybrid Light: advanced technology with long range
-
Hik-Connect cloud service and app for remote management and views of devices
-
Built-in microphone and speaker for real-time audio security
-
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
-
Water and dust resistant (IP66)

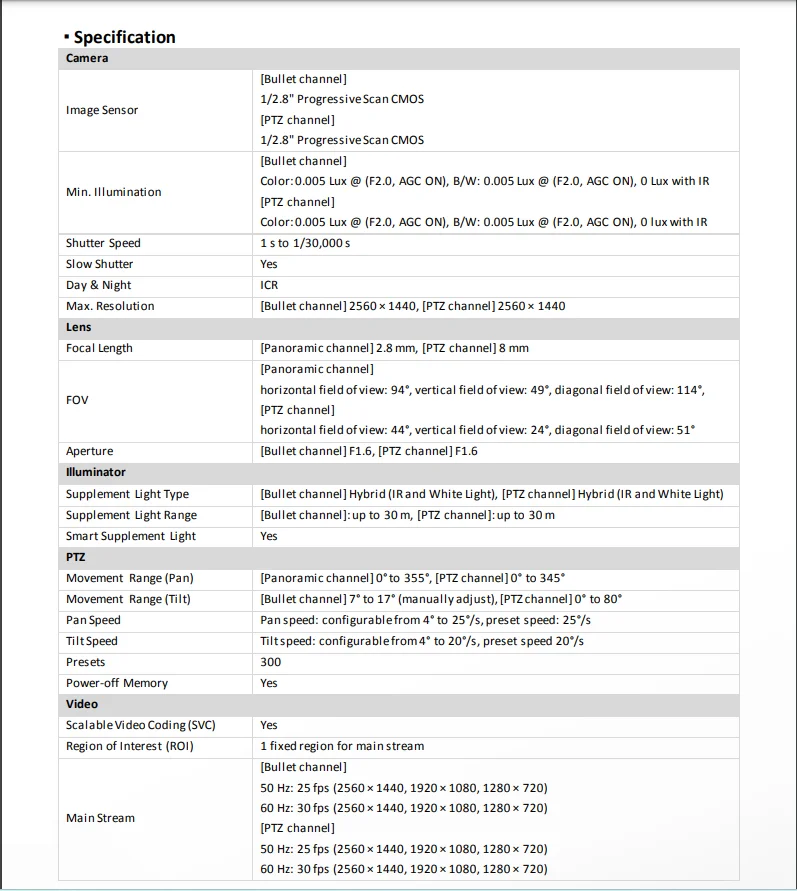

Camera
-
Image Sensor
[Bullet channel]
1/2.8 Progressive Scan CMOS
[PTZ channel]
1/2.8 Progressive Scan CMOS"
-
Min. Illumination
[Bullet channel]
Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR
[PTZ channel]
Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 lux with IR
-
Shutter Speed1 s to 1/30,000 s
-
Slow ShutterYes
-
Day & NightICR
-
Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
-
Lens
-
Focal Length[Panoramic channel] 2.8 mm, [PTZ channel] 8 mm
-
FOV
[Panoramic channel]
horizontal field of view: 94°, vertical field of view: 49°, diagonal field of view: 114°,
[PTZ channel]
horizontal field of view: 44°, vertical field of view: 24°, diagonal field of view: 51°
-
Aperture[Bullet channel] F1.6, [PTZ channel] F1.6
-
Illuminator
-
Supplement Light Type[Bullet channel] Hybrid (IR and White Light), [PTZ channel] Hybrid (IR and White Light)
-
Supplement Light Range[Bullet channel]: up to 30 m, [PTZ channel]: up to 30 m
-
Smart Supplement LightYes
-
PTZ
-
Movement Range (Pan)[Panoramic channel] 0° to 355°, [PTZ channel] 0° to 345°
-
Movement Range (Tilt)[Bullet channel] 7° to 17° (manually adjust), [PTZ channel] 0° to 80°
-
Pan SpeedPan speed: configurable from 4° to 25°/s, preset speed: 25°/s
-
Tilt SpeedTilt speed: configurable from 4° to 20°/s, preset speed 20°/s
-
Presets300
-
Power-Off MemoryYes
-
Video
-
Scalable Video Coding (SVC)Yes
-
Region Of Interest (ROI)1 fixed region for main stream
-
Main Stream
[Bullet channel]
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
[PTZ channel]
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
-

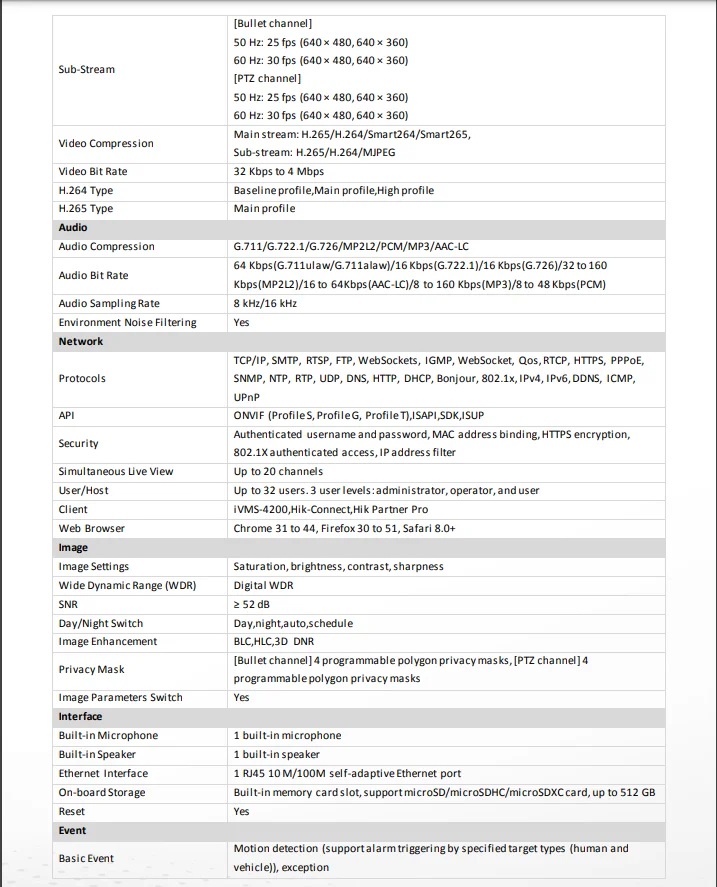

Sub-Stream
[Bullet channel]
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
[PTZ channel]
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
-
Video Compression
Main stream: H.265/H.264/Smart264/Smart265,
Sub-stream: H.265/H.264/MJPEG
-
Video Bit Rate32 Kbps to 4 Mbps
-
H.264 TypeBaseline profile,Main profile,High profile
-
H.265 TypeMain profile
-
Audio
-
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
-
Audio Bit Rate64 Kbps(G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)/16 to 64Kbps(AAC-LC)/8 to 160 Kbps(MP3)/8 to 48 Kbps(PCM)
-
Audio Sampling Rate8 kHz/16 kHz
-
Environment Noise FilteringYes
-
Network
-
ProtocolsTCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, WebSocket, Qos, RTCP, HTTPS, PPPoE, SNMP, NTP, RTP, UDP, DNS, HTTP, DHCP, Bonjour, 802.1x, IPv4, IPv6, DDNS, ICMP, UPnP
-
APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
-
SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
-
Simultaneous Live ViewUp to 20 channels
-
User/HostUp to 32 users. 3 user levels: administrator, operator, and user
-
ClientiVMS-4200,Hik-Connect,Hik Partner Pro
-
Web BrowserChrome 31 to 44, Firefox 30 to 51, Safari 8.0+
-
-
Image SettingsSaturation, brightness, contrast, sharpness
-
Wide Dynamic Range (WDR)Digital WDR
-
SNR≥ 52 dB
-
Day/Night SwitchDay,night,auto,schedule
-
Image EnhancementBLC,HLC,3D DNR
-
Privacy Mask[Bullet channel] 4 programmable polygon privacy masks, [PTZ channel] 4 programmable polygon privacy masks
-
Image Parameters SwitchYes
-
Interface
-
Built-In Microphone1 built-in microphone
-
Built-In Speaker1 built-in speaker
-
Ethernet Interface1 RJ45 10 M/100M self-adaptive Ethernet port
-
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
-
ResetYes
-
Event
-
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), exception
-

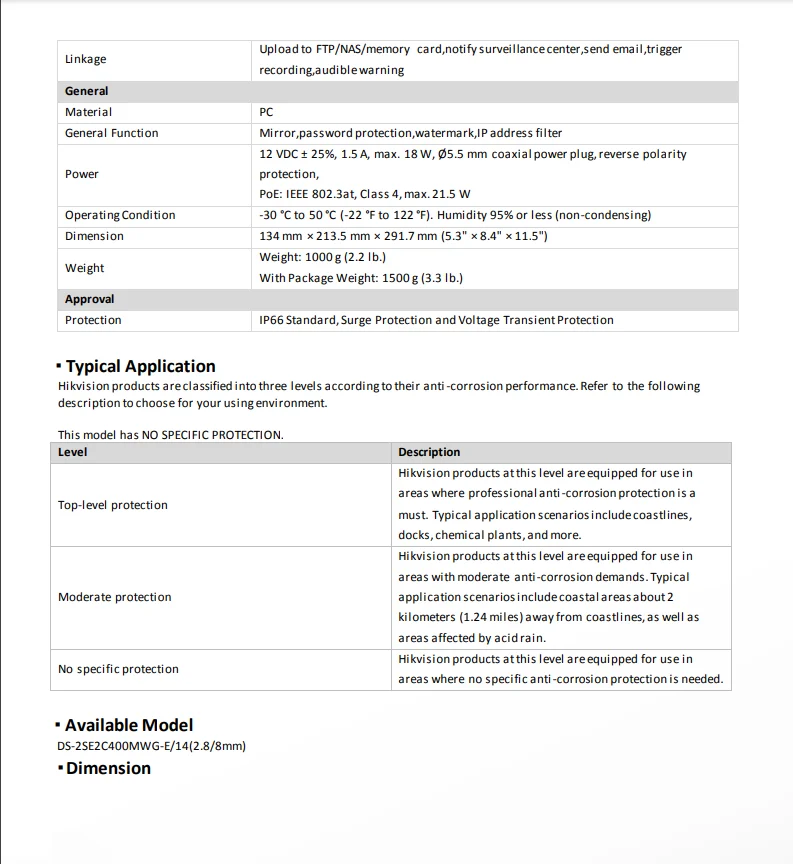

LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,audible warning
-
General
-
MaterialPC
-
General FunctionMirror,password protection,watermark,IP address filter
-
Power
12 VDC ± 25%, 1.5 A, max. 18 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3at, Class 4, max. 21.5 W
-
Operating Condition-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
-

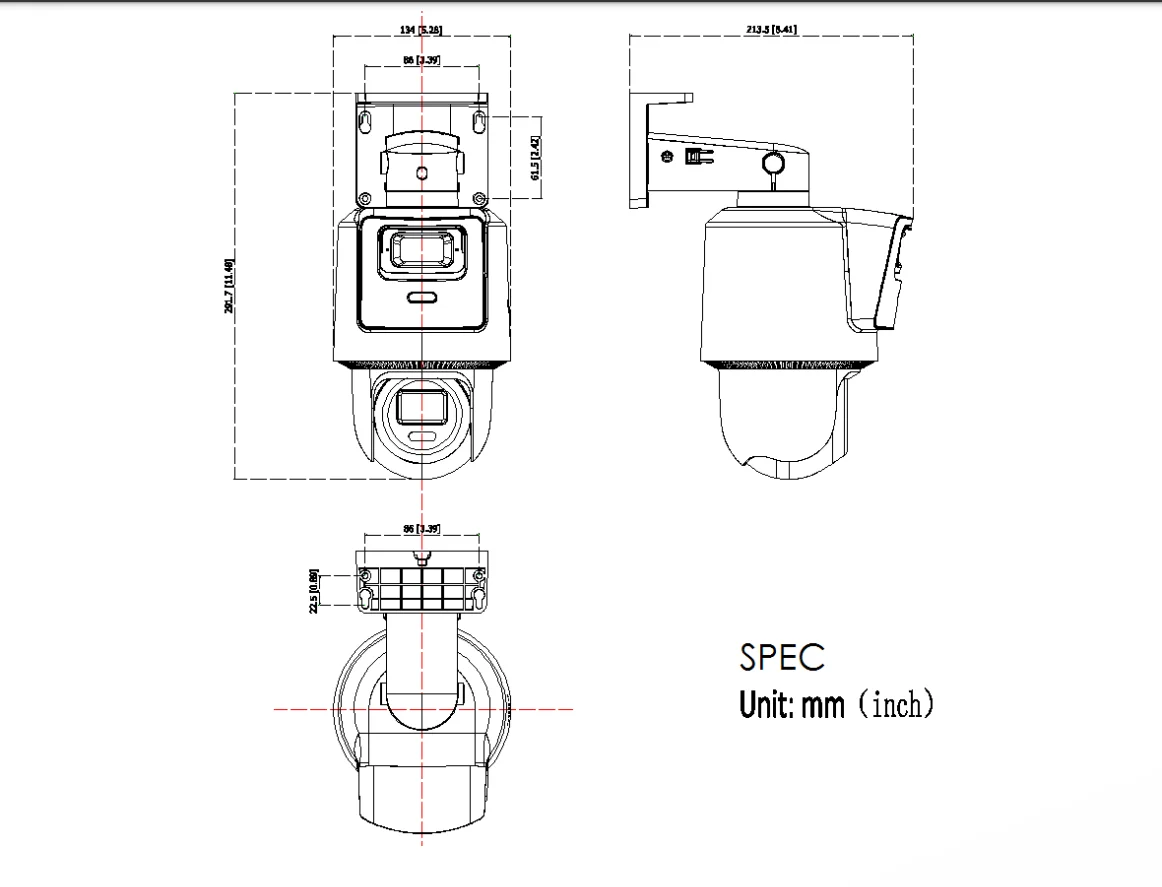

Dimension134 mm × 213.5 mm × 291.7 mm (5.3" × 8.4" × 11.5")
-
Weight
Weight: 1000 g (2.2 lb.)
With Package Weight: 1500 g (3.3 lb.)
-
Approval
-
ProtectionIP66 Standard, Surge Protection and Voltage Transient Protection
-
[Bullet channel]
1/2.8 Progressive Scan CMOS
[PTZ channel]
1/2.8 Progressive Scan CMOS"
[Bullet channel]
Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR
[PTZ channel]
Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 lux with IR
Shutter Speed1 s to 1/30,000 s
Slow ShutterYes
Day & NightICR
Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
Lens
Focal Length[Panoramic channel] 2.8 mm, [PTZ channel] 8 mm
[Panoramic channel]
horizontal field of view: 94°, vertical field of view: 49°, diagonal field of view: 114°,
[PTZ channel]
horizontal field of view: 44°, vertical field of view: 24°, diagonal field of view: 51°
Aperture[Bullet channel] F1.6, [PTZ channel] F1.6
Illuminator
Supplement Light Type[Bullet channel] Hybrid (IR and White Light), [PTZ channel] Hybrid (IR and White Light)
Supplement Light Range[Bullet channel]: up to 30 m, [PTZ channel]: up to 30 m
Smart Supplement LightYes
PTZ
Movement Range (Pan)[Panoramic channel] 0° to 355°, [PTZ channel] 0° to 345°
Movement Range (Tilt)[Bullet channel] 7° to 17° (manually adjust), [PTZ channel] 0° to 80°
Pan SpeedPan speed: configurable from 4° to 25°/s, preset speed: 25°/s
Tilt SpeedTilt speed: configurable from 4° to 20°/s, preset speed 20°/s
Presets300
Power-Off MemoryYes
Video
Scalable Video Coding (SVC)Yes
Region Of Interest (ROI)1 fixed region for main stream
[Bullet channel]
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
[PTZ channel]
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
[Bullet channel]
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
[PTZ channel]
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Main stream: H.265/H.264/Smart264/Smart265,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 4 Mbps
H.264 TypeBaseline profile,Main profile,High profile
H.265 TypeMain profile
Audio
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps(G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)/16 to 64Kbps(AAC-LC)/8 to 160 Kbps(MP3)/8 to 48 Kbps(PCM)
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes
Network
ProtocolsTCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, WebSocket, Qos, RTCP, HTTPS, PPPoE, SNMP, NTP, RTP, UDP, DNS, HTTP, DHCP, Bonjour, 802.1x, IPv4, IPv6, DDNS, ICMP, UPnP
APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. 3 user levels: administrator, operator, and user
ClientiVMS-4200,Hik-Connect,Hik Partner Pro
Web BrowserChrome 31 to 44, Firefox 30 to 51, Safari 8.0+
Image SettingsSaturation, brightness, contrast, sharpness
Wide Dynamic Range (WDR)Digital WDR
SNR≥ 52 dB
Day/Night SwitchDay,night,auto,schedule
Image EnhancementBLC,HLC,3D DNR
Privacy Mask[Bullet channel] 4 programmable polygon privacy masks, [PTZ channel] 4 programmable polygon privacy masks
Image Parameters SwitchYes
Interface
Built-In Microphone1 built-in microphone
Built-In Speaker1 built-in speaker
Ethernet Interface1 RJ45 10 M/100M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
ResetYes
Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), exception
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,audible warning
General
MaterialPC
General FunctionMirror,password protection,watermark,IP address filter
12 VDC ± 25%, 1.5 A, max. 18 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3at, Class 4, max. 21.5 W
Operating Condition-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
Dimension134 mm × 213.5 mm × 291.7 mm (5.3" × 8.4" × 11.5")
Weight: 1000 g (2.2 lb.)
With Package Weight: 1500 g (3.3 lb.)
Approval
ProtectionIP66 Standard, Surge Protection and Voltage Transient Protection
