SPECIFICATIONS
AI Functions: Smart Tracking
APP: Camhipro,Camhi
Alarm Type: Local Alarm,FTP Photo,Email Photo
App name: Other
Audio Output: Two Way Audio
Auto Tracking/Cruise: Support
Auto Zoom: Support
Brand Name: TVPSii
Certification: CE,RoHS
Choice: yes
Color: black
Color Night Vision: Other
Connect way: Wifi,Lan
Connectivity: Wifi(5g)
High Definition: 8.0 Megapixels
High-concerned chemical: None
IP Rating: IP66
IR Distance(m): 200m-300m/400m-500m
Installation: Wall Mounted
Internal Storage: max.512GB
Led: laser infrared
Lens (mm): 2mm
Lens Quantity: Single Lens
Megapixels: 8MP
Minimum Illumination(Lux): 0.001LUX
Model Number: TP-WZ08B-54X/90X
Movement Range(Pan): 0°-360°
Movement Range(Tilt): Other
Operating Temperature: -50°- +60°
Optical Zoom: Other
Origin: Mainland China
Power Consumption(W): 0-30W
Power Mode: Mains Electricity
Power Source: Normal
Power Supply: Normal
Power Supply(V): 12V
Rechargeable Battery: None
Rechargeable Battery Capability: Other
Scene: Indoor and outdoor
Sensor: CMOS
Sensor Brand: Sony
Shell Material: Metal
Smart home platform: Other
Special Features: Waterproof / Weatherproof
Style: Dome Camera
Supported Mobile Systems: iOS,Android
Supported Operating Systems: No
TF Card: None
Video Compression Format: H.265
Viewing Angle : 360°
Warranty: 3 years
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: 50x
Zoom type: Optical zoom
is_customized: Yes
Friendly Reminder:
-
WIFI PTZ Camera all support human auto tracking,automatic cruise,Humanoid detection Alarm.
-
WIFI PTZ camera(APP:Camhipro.Camhi) is Infrared night vision, support black and white night vision.
-
The camera is equipped with a 5dbi external antenna,Camera support wifi and lan(rj45) connection method.
-
90X PTZ Camera is 360 degree rotation,54X PTZ Camera is 355 degree rotation.
-
GK7605 V100+1/2.8" Sony IMX335:5MP,2592px*1944px 25fps
-
Mstar 338Q+1/2.8" Sony IMX415:8MP 4K ,3840px*2160px. 20fps
-
Support Auto Zoom,Auto Tracking human
-
Support 8 preset points,support 355-degree rotation, AB two points, multi-point cruise, large monitoring range, precise positioning and other advantages.
Q:Which alarm methods are supported?
A:Support set human detection Alarm, auto voice alert, video and picture capture when human body movement.
Q:What is H.265+ Compression?
A:H.265+ is the newest compression format of surveillance video , it not only runs faster and smoother but also takes up less storage capacity.

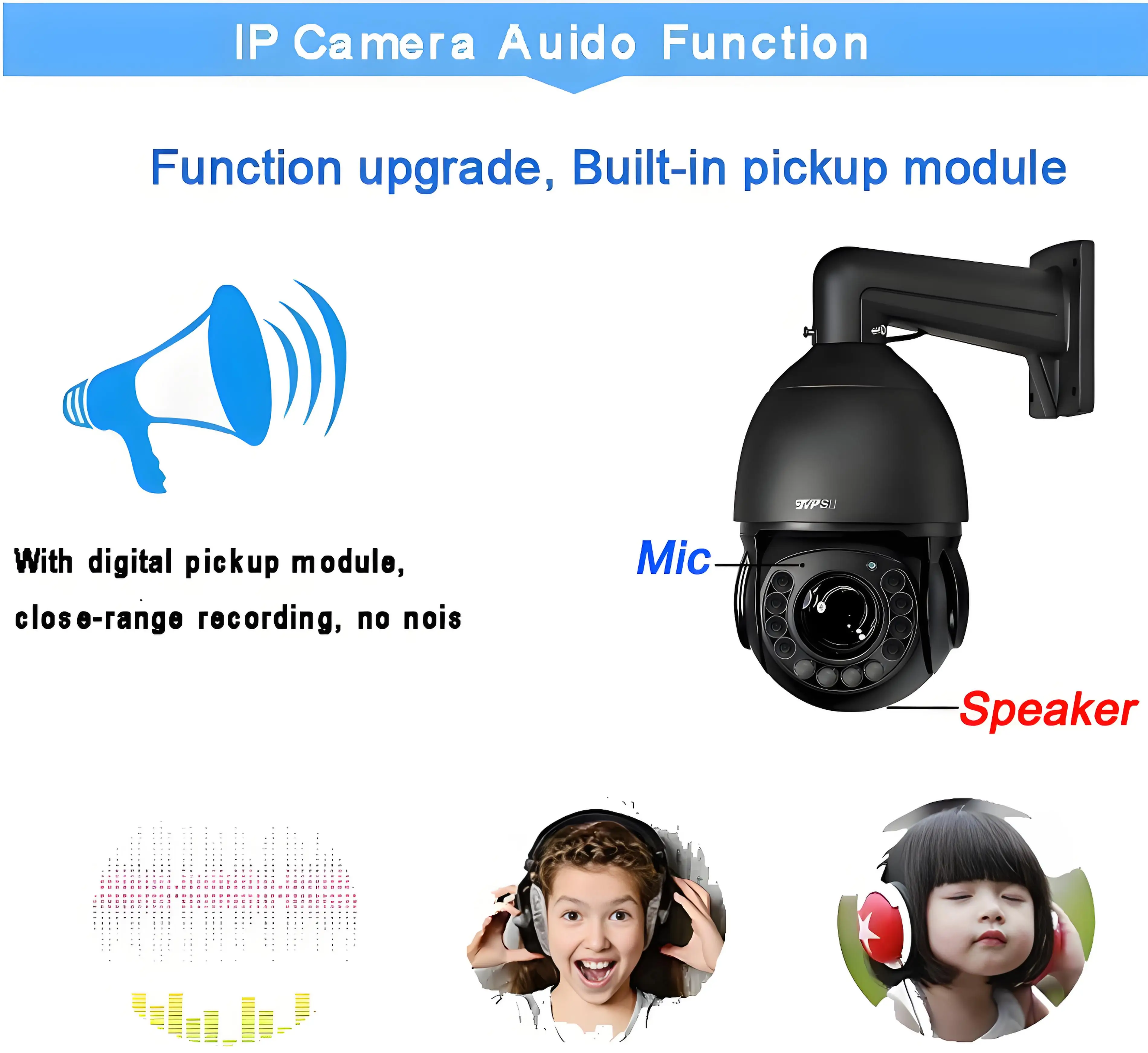

Q:What is Auido function?
|
Resolution |
8MP |
5MP |
|
|
system structure |
Mstar338Q |
GK7605 |
|
|
CMOS Sensor |
4K 8MP 1/2.8" Sony IMX415 |
5mp 1/2.8" Sony IMX335 |
|
|
Min illumination |
Low illumination 0.001Lux |
Black light illumination,0.0001Lux |
|
|
Video processing |
H.265AI / H.265 + (compatible with H.265 / H.264) encoding, dual stream, AVI format |
||
|
Image output |
8MP 3840px*2160px |
5MP 2592px*1944px |
|
|
Shutter |
1/50 (1/60) seconds to 1/10000 seconds |
||
|
ILed Light |

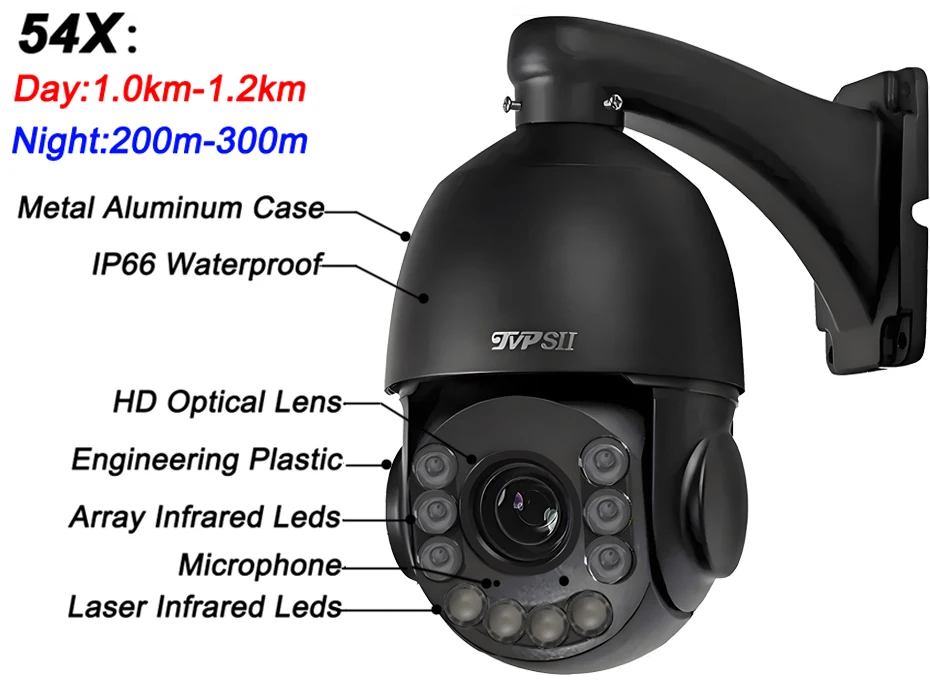

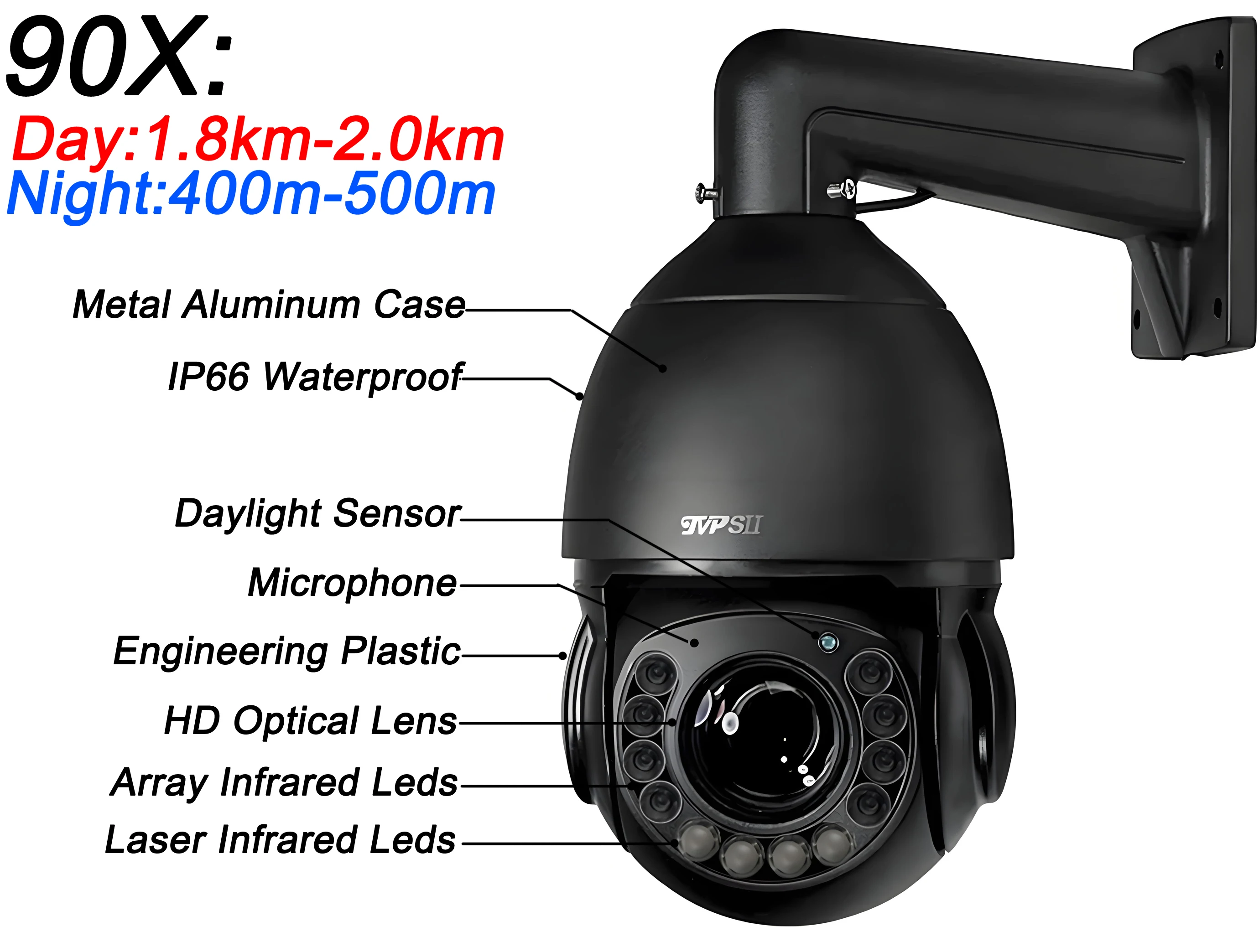

6pcs infrared Array+4pcs Laser led/8pcs infrared Array Led+4pcs laser Leds(90X) |
||
|
IR Distance |
200m-300m(54X)/400m-500m(90X) |
||
|
Conversion mode |
Day and night conversion mode |
||
|
Noise reduction |
Support 2D/3D noise reduction |
||
|
Wide dynamic |
digital wide dynamics |
||
|
Network Interface |
1*RJ45 network interface,10/100M adaptive |
||
|
Reliability |
Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours -10 ℃ ～ 65 ℃ test is stable and reliable |
||
|
Cruise settings |
Support(Fixed-point cruise, cruise between two points,360° cruise,……) |
||
|
SD Card |
Support(Max:512GB) |
||
|
Human Auto Tracking/cruise |
Support |
||
|
Network Support |
2.4 GHz,5.0 GHz/IEEE802.11b. 802.11g. 802.11n Draft |
||
|
Network protocol |
TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP |
||
|
Presets |
128 |
||
|
Optical focus |
54X/90X |
||
|
ONVIF |
support |
||
|
Rotation |
90 degrees vertical,355 degrees horizontal(54X)/360 degrees horizontal(90X) |
||
|
Water resistance |
IP66 |
||
|
Work Temperature |
-50°C ~ +60°C |
||
|
Weight |
1.95kg(54X)/3.5kg(90X) |
||
|
Phone monitoring |
CamHipro,Camhi |
||
|
Power Supply |
12V 2A(54X)/12V 3A(90X) |
||
Friendly Reminder:
-

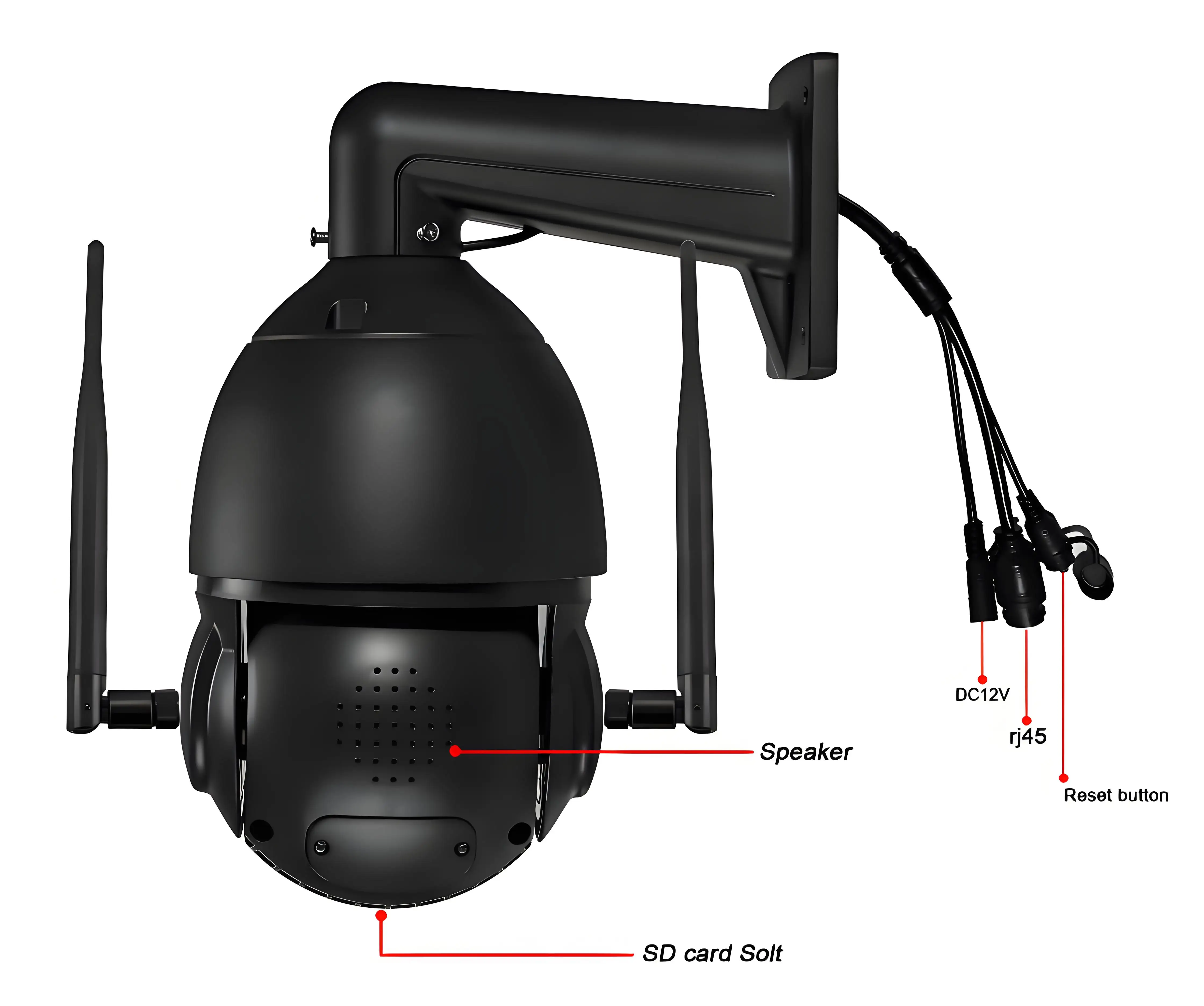

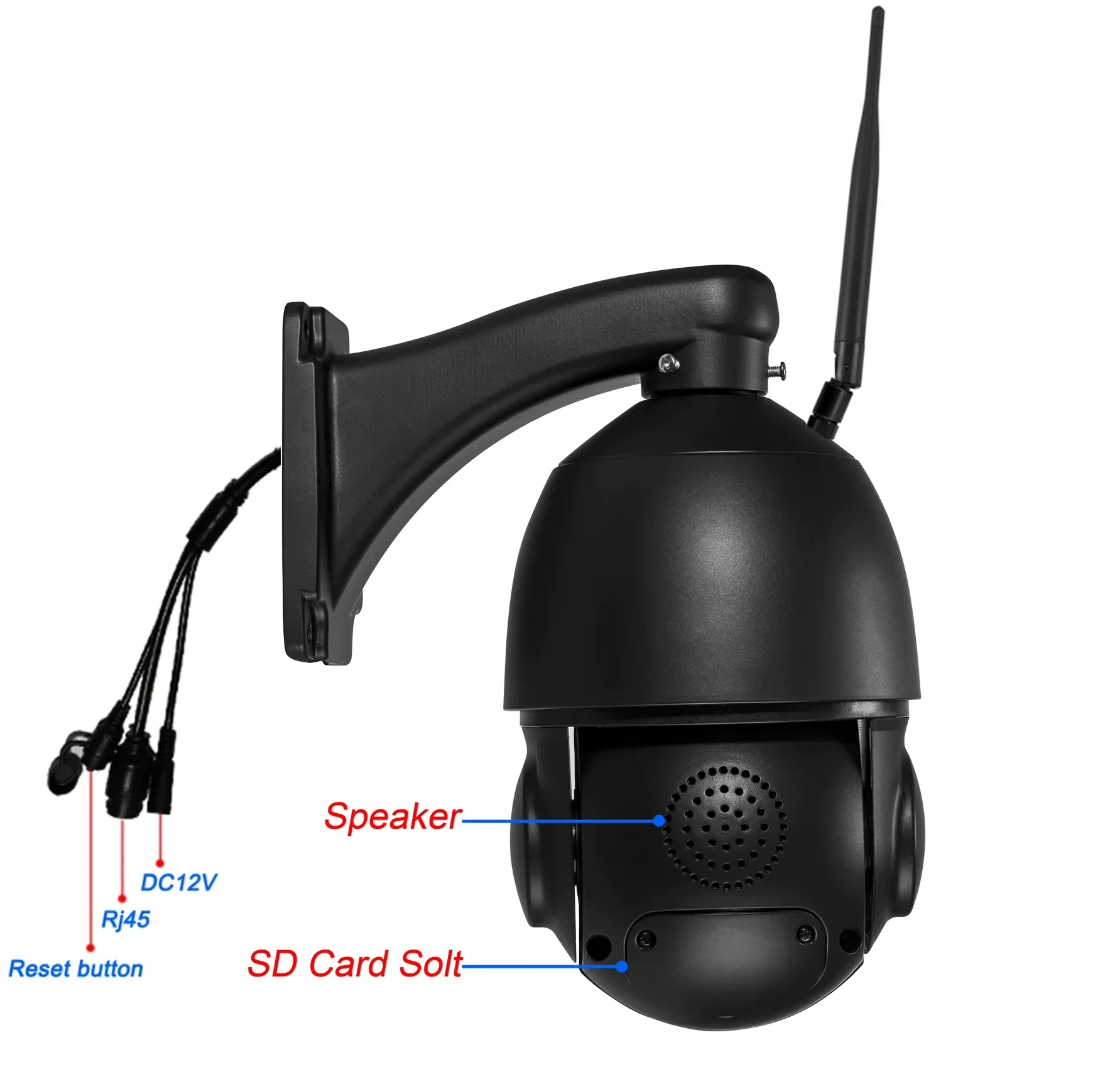

Need open camera(very easy),then find the SD Card Slot Position and insert SD Card.
-
if you want restore factory set, please push "reset" button for 5 seconds.(we also do reset function by app)
-
We refuse to use expansion cards and high imitation card, use brand memory cards(certified products), quality is guaranteed, showed at the picture.
Notice:
WIFI Camera work not good with12V 1A Power adpater at night , the night vision of camera is very bad ,so we use 12V 2A 3A power adpater!!!(many seller use 12V 1A for cutting cost,so be careful)
NOTICE:
Q:it always cause problems in trade between countries,for example, bad weather for delay, custom problempost worker broken it, and so on.
